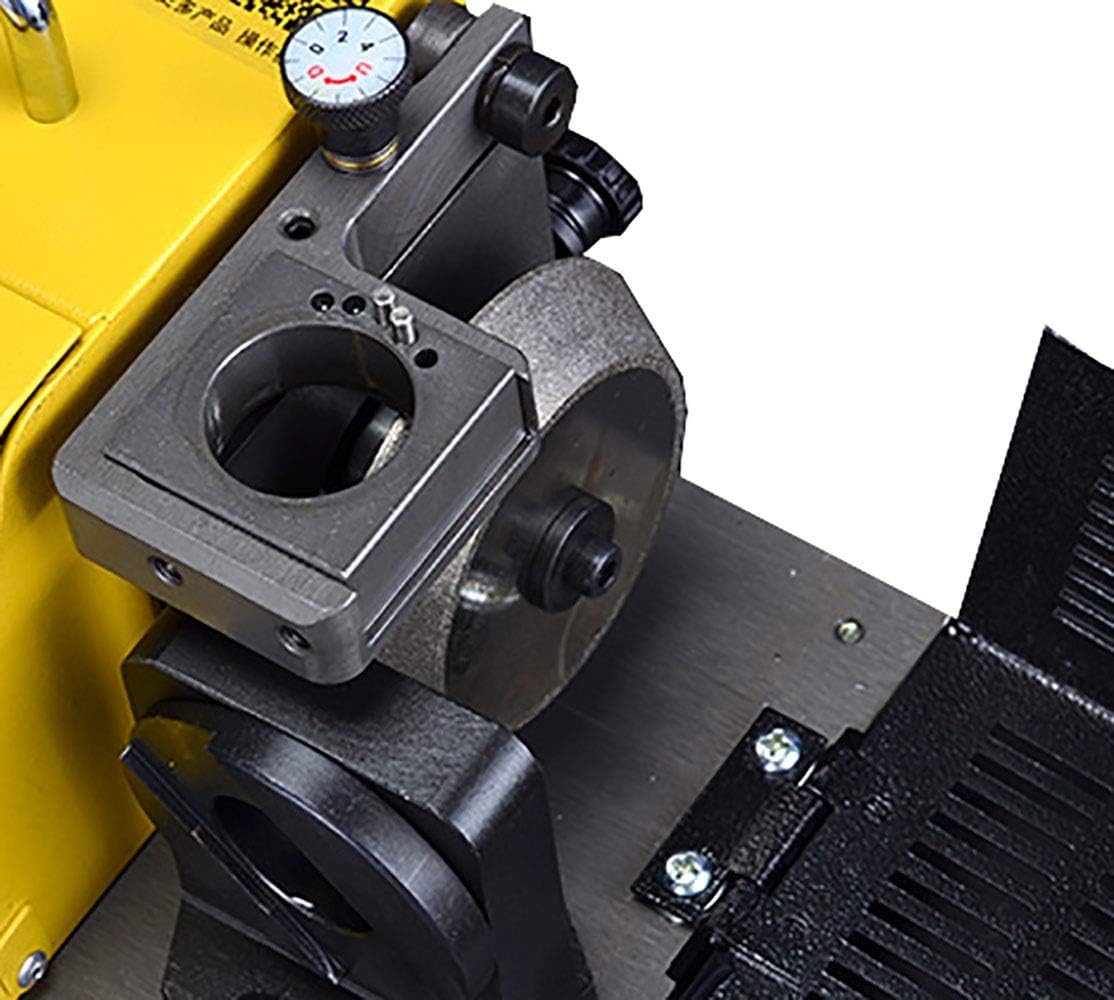

MXBAOHENG MR-20G Drill Bits Sharpener Grinder Grinding Machine for High-Speed Steel/Carbide 3-20mm with Adjustable Locating Pins/Adjustable Angles from 90°to 135° (110V)

ParametersModel: MR-20GGrinding Range: ф3-ф20mmPoint Angle: 90° -135°Power: 110 VMotor: 180 WSpeed: 4800 rpmGrinding Wheel: TaiwanStandard 11 Collets: 3mm to 20mmDimension: 340x 180 x 200 mmWeight: 11 kgUsing NoteAdjust the scale pointer according to the outer diameter of the drill to be grind and rotate it to locate.Grinding wheel can be equipment directly with an accurate angle and long service life. Insert the collet according to the parallel line of the grinding hole and rotate it around 180 degrees to complete the grinding.ApplicationThe machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.

• 1.Grinding is accurate and rapid, easy operation with no skill to grind.
• 2.Economical price that greatly reduces the cost and improves the use effect.
• 3.The grinding wheel can be equipment directly with an accurate angle and long service life.
• 4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
• 5.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
