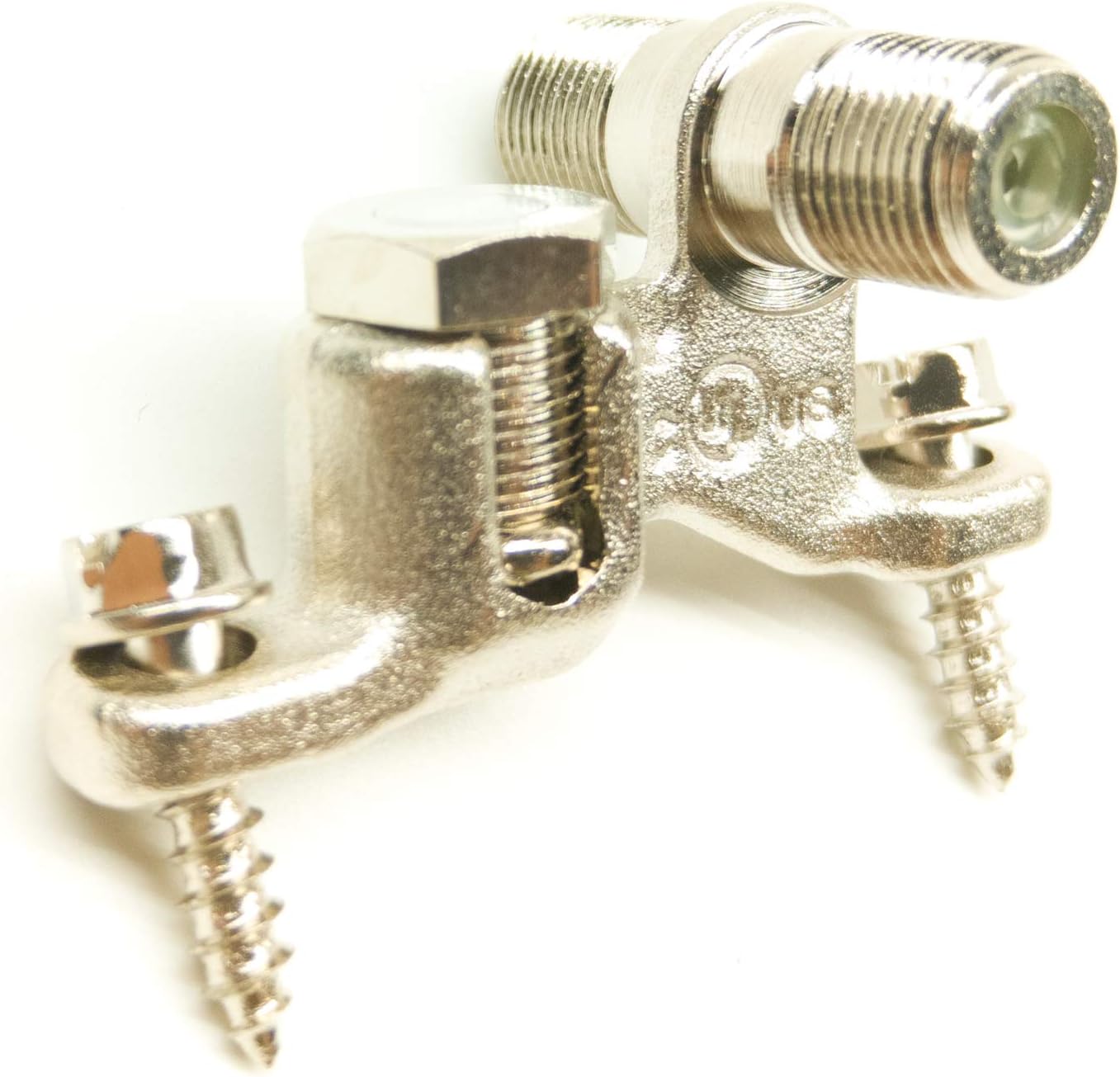

Single Port F-Pin Coax Grounding Block, Weather Resistant Nickel Plated Brass Construction, CATV HDTV Antenna Satellite Dish Ground, UL Listed SCTE, (5 Pack)
Product details
| Management number | 234146040 | Release Date | 2026/06/27 | List Price | US$6.00 | Model Number | 234146040 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Used when grounding coaxial cable from an outdoor antenna or satellite dish. This grounding block is used to protect electronics from being damaged by power surges and lightning. A ground block bonds the shield of coax to the electrical ground of the residence.Electrical SpecificationsImpedance: 75 ohmOperating Frequency Band: 0 – 3000 MHzInsertion Loss at Frequency Band, maximum: 0.2 dB at 0–1002 MHz | 0.3 dB at 1002–3000 MHzReturn Loss at Frequency Band, minimum: 35 dB at 0–1002 MHz | 25 dB at 1002–2000 MHz | 20 dB at 2000–3000 MHzShielding Effectiveness, minimum: 120 Db Mechanical SpecificationsMaterial Type: BrassPlating: NickelRecommended Bonding Torque, minimum: 30.0 in lbRecommended Bonding Torque, maximum: 50.0 in lb
- Nickel Plated Brass Construction Single F-Pin Ground Block
- Fits Grounding Cable 14AWG - 6AWG Copper
- Impedance: 75 Ohm / Operating Frequency Band: 0-3000 MHz
- Comes with two screws, and one hexagon ground screw
- Please see all available products at PHAT SATELLITE INTL
| UPC | 680168233030 |
|---|---|
| ASIN | B07N2Z9WSJ |
| Color | Ground Block (Single, F-Type) - Brass |
| Gauge | 14.0 |
| Model | 680168233030 |
| Brand Name | PHAT SATELLITE |
| Item Weight | 5.6 Ounces |
| Manufacturer | PHAT SATELLITE INTL |
| Material Type | Brass |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 75 Amps |
| Number Of Poles | 1 |
| Specification Met | UL |
| Number Of Contacts | 5 |
| Number of Positions | 1 |
| Item Dimensions W x H | 5"W x 5"H |
