Universal 12V Under Dash Air Conditioning AC Kit 10000btu 12 volt Electric Air Conditioner for Car Van Taxi Automatic RVs Truck Electric AC energy Saving Fast Cooling

12 V Under dash Electric Drive air conditionerAdvantage:Low Noise8 hour Flame-out usingEasy InstallPackage List1*Condenser*Fan*Dryer Bottle（Dimension：14*18inch with bottle，OR interface）Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with carton）1*Outlet1*Integrated Electric Compressor1.Wiring Harness1*Fittings KitSCROLLCOMPRESSOR SPECIFICATIONRefrigerating capacity: 3kw maxRated Voltage:12 VoltApplication:Automotive air-conditionRefrigerant: R134aCompressor cooling:Inhalation refrigerant coolingDisplacement: 12ml/reRefrigerator oil: EMKARATE RL68H/100mlNote:1.The total leakage of the compressor is not greater than 5g/year.2.The noise is not greater than 74dB in rated speed.3.Insulation resistance must be greater than 20MΩ 4.The tolerance of None remarked dimensionsmay be accordance with GB1804-m.5. The performance of all unmentioned are in accordance withGB/T 22068-2018.

• 【Fast-Cooling】This type AC adopt 20CC Electric Scroll Compressor Stronger cooling capacity, faster cooling speed. This AC is New Upgrade of the Under dash AC kit, the 10001BTU cooling capacity in summer allows you to enjoy a cool atmosphere.
• 【Product Specifications】 Rated Voltage(V)：12V DC ，Current(A)：40-60A， Rated Power(W) ：550-600W， Rated Cooling Capacity(W)：1800-3000W，BTU:10000 ,Refrigerant：R134A(Not Inclued)， Charging Quantity of Refrigerant (g)：500-550g， Refrigerant Oil：POE68
• 【Upgrade Design】Combine traditional Receiver Dryers and condenser fan and condenser, Easy Install and connecting.The integrated design helps to reduce leakage points, optimize internal flow channels, thereby improving overall heat exchange efficiency and system stability.
• 【New energy Fuel saving】This under dash ac is driven by battery. Eliminating the fuel consumption of traditional air conditioning, directly improving the vehicle's range, and achieving true "energy saving". The system can directly call on the battery power to maintain operation after the vehicle is turned off or the main power is turned off. Powered by electricity, it is expected to save up to $6000 in fuel costs annually.

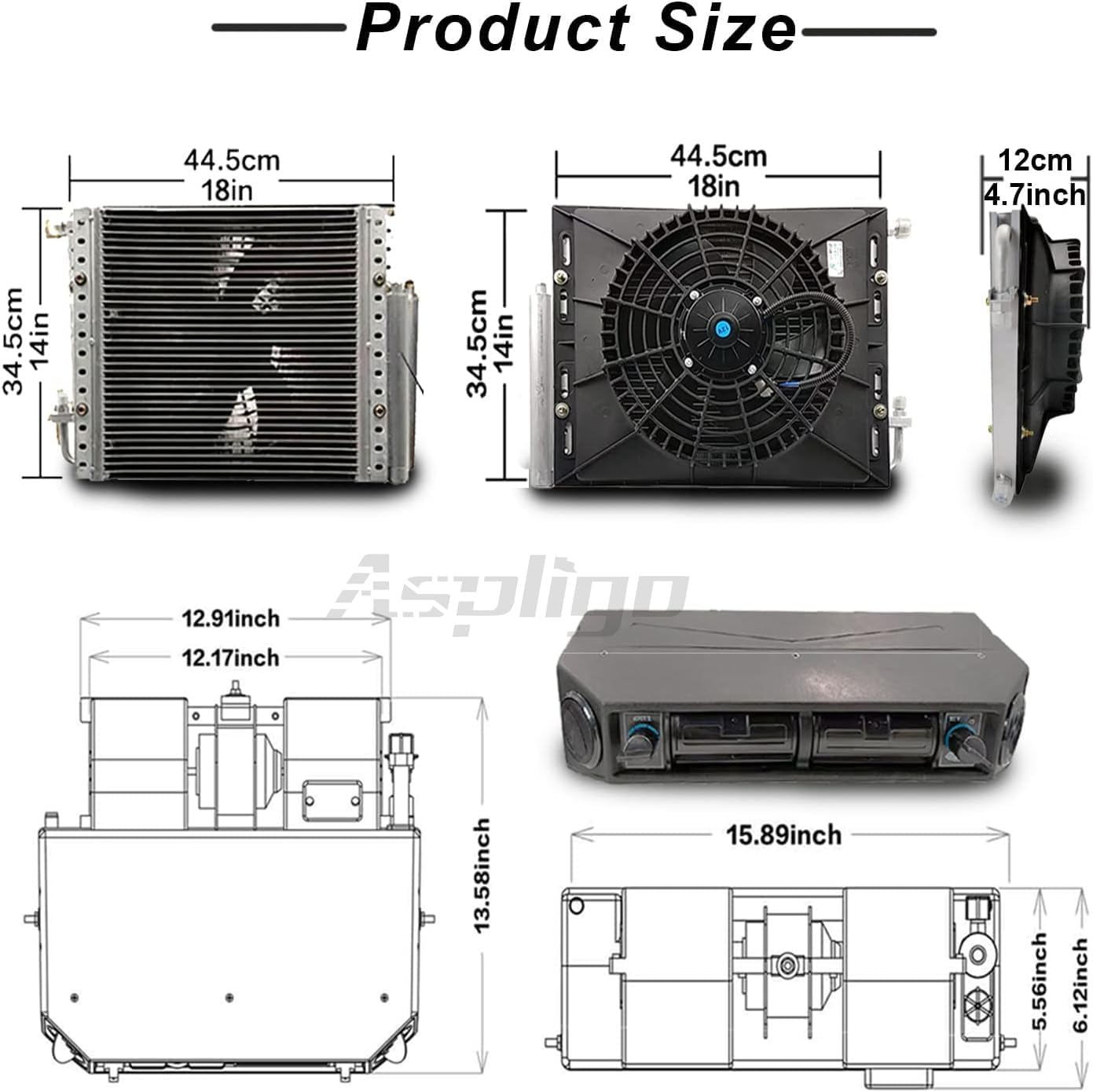

• 【Fit most vehicles】This type of under dash ac kit is suitable for most cars, whether they are traditional or new energy vehicles, as well as trucks, RVs, campers, buses, boats, etc. Please confirm the product size (internal unit: 15.89 * 13.58 * 6.12 inches) before purchasing.
• 【Low voltage protection】Prevent excessive power consumption and start without pressure.In addition to protecting your battery, the low voltage protection mechanism allows the device to start smoothly without placing undue stress on the power source. Whether you're using the device in a car, truck, boat, or during outdoor adventures, this feature guarantees reliable performance while extending the lifespan of both the device and your power supply.
• 【Shipping Notice】This product is shipped separately in two packages: the internal unit and the external unit, and the packages may be delivered at different times. If you have any questions about the package and products, you can contact our customer service at any time, and our customer service will reply to you within 24 hours.
